11KW Off Grid Solar Inverter | ED11048 | Dual MPPT, Grid Support, Factory Supply

The ED11048 11KW Off Grid Solar Inverter delivers maximum performance for large residential and industrial solar power systems. It features dual MPPT inputs, grid connection capability, and comprehensive lithium battery communication support.

Features:

Industrial-grade design for heavy-duty residential and commercial use
Dual MPPT tracking with maximum PV input of 7.5kW × 2
Grid connection support and BMS communication for lithium batteries
Supports operation without battery for flexible system design
Rapid transfer time (10–20ms) ensures uninterrupted power supply
Parallel connection up to 9 units for scalable power expansion
High efficiency (up to 98%) and pure sine wave output for precision equipment

Model		ED11048
AC Input Voltage	AC Input	220V AC/110V AC
	Input Voltage Range	90-280V±3V AC(Normal Mode) 170V-280V±3V AC(UPS Model)
	Input Frequency	50/60Hz±5%
Output	Rated Power	11000W
	Output Voltage	220/230/240VAC±5%
	Output Frequency	50/60Hz±0.1%
	Output Wave	Pure Sine Wave
	Transfer Time	≤10ms(UPS Model)/≤20ms(INV Model)
	Peak Power	22000VA
	Overload Ability	Battery Model:11s@105%-150% Load 2s@150%-200% Load 400ms@＞200% Load
Battery	Rated Voltage	48V DC
	Constant Charging(Configurable)	56.4V DC
	Charging Voltage(Configurable)	54V DC
Charger	PV Charging Method	Double MPPT
	Max PV Input Power	2*5500W
	MPPT Input Voltage Range	90~500V DC
	Optimal VMP Range	300~400V DC
	Max PV Input Voltage	500V DC
	Max PV Input Current	18A
	Max PV Charging Current	150A
	Max AC Charging Current	150A
	Max Charging Current	150A
Dispaly	LCD Interface	Can display operating mode/Load/Input/Output
Inerface	RS232	Baud Rate 2400
	Expansion Slot Communication Inerface	Lithium Battery BMS Communication Card,WiFi/Pitch 2.54mm
	Parallel Inerface	Not Support Parallel
Ambient Temperature	Operation Temperature	-10℃~50℃
	Operating Environment Humidity	-10℃~50℃
	Storage Temperature	Non Condensing
	Noise	≤50dB

Optional WIF Remote Monitoring Module

Supports lithium battery communication
External WIFI
Generator auto-start dry contact
Enables remote real-time viewing and settings via the app

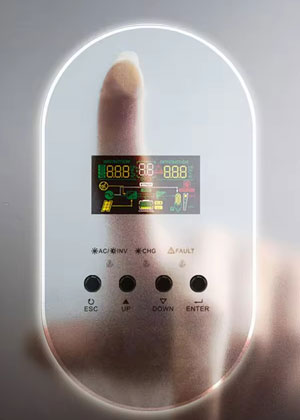

HD LCD Screen Display, Operating Status

Real-time display of actual load power, enhancing user experience
Supports parameter settings
Easy and quick operation

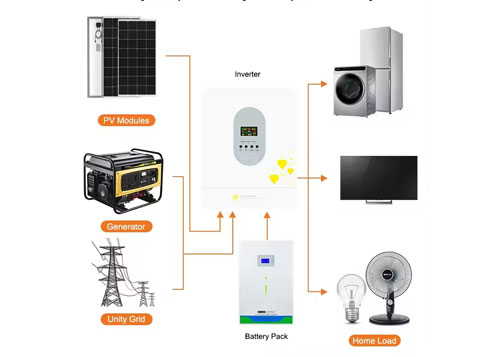

Inverter Working Diagram

Provides high-quality AC power for stable and reliable performance
High efficiency for optimal energy conversion
Consistent voltage output for smooth operation, ensuring system reliability

ED11048 11KW Off Grid Solar Inverter

Optional WIF Remote Monitoring Module

HD LCD Screen Display, Operating Status

Inverter Working Diagram
