Off Grid Solar Inverter 1500W 12V DC | MPPT Controller | Compact Design for Home Solar System

The ED2012 1500W Off Grid Solar Inverter is a compact and efficient power solution designed for home and small commercial solar systems.
Equipped with an advanced MPPT charge controller, it ensures maximum solar energy utilization and stable pure sine wave output for sensitive electronics.
The inverter supports wide voltage input (90–280VAC), automatic frequency adaptation (50/60Hz), and multiple protection functions for overload, short circuit, and reverse connection.
Its lightweight body and low noise design (≤50dB) make it ideal for residential, mobile, and remote applications.
Perfect for users who require reliable off-grid performance, easy installation, and long-term durability.

Key Selling Points:

1500W pure sine wave output for sensitive electronics
Integrated MPPT solar charge controller
Compact wall-mounted design
Reliable backup for routers, lights, and small appliances

Model		ED2012
AC Input Voltage	AC Input	220V AC/110V AC
	Input Voltage Range	90-280V±3V AC(Normal Mode) 170V-280V±3V AC(UPS Model)
	Input Frequency	50/60Hz±5%
Output	Rated Power	1600W
	Output Voltage	220/230/240VAC±5%
	Output Frequency	50/60Hz±0.1%
	Output Wave	Pure Sine Wave
	Transfer Time	≤10ms(UPS Model)/≤20ms(INV Model)
	Peak Power	3200VA
	Overload Ability	Battery Model:11s@105%-150% Load 2s@150%-200% Load 400ms@＞200% Load
Battery	Rated Voltage	12V DC
	Constant Charging(Configurable)	14.1V DC
	Charging Voltage(Configurable)	13.5V DC
Charger	PV Charging Method	MPPT
	Max PV Input Power	2000W
	MPPT Input Voltage Range	30~500V DC
	Optimal VMP Range	300~400V DC
	Max PV Input Voltage	500V DC
	Max PV Input Current	13A
	Max PV Charging Current	100A
	Max AC Charging Current	60A
	Max Charging Current	100A
Dispaly	LCD Interface	Can display operating mode/Load/Input/Output
Inerface	RS232	Baud Rate 2400
	Expansion Slot Communication Inerface	Lithium Battery BMS Communication Card,WiFi/Pitch 2.54mm
	Parallel Inerface	Not Support Parallel
Ambient Temperature	Operation Temperature	-10℃~50℃
	Operating Environment Humidity	-10℃~50℃
	Storage Temperature	Non Condensing
	Noise	≤50dB

Optional WIF Remote Monitoring Module

Supports lithium battery communication
External WIFI
Generator auto-start dry contact
Enables remote real-time viewing and settings via the app

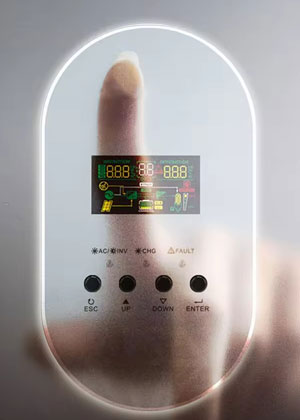

HD LCD Screen Display, Operating Status

Real-time display of actual load power, enhancing user experience
Supports parameter settings
Easy and quick operation

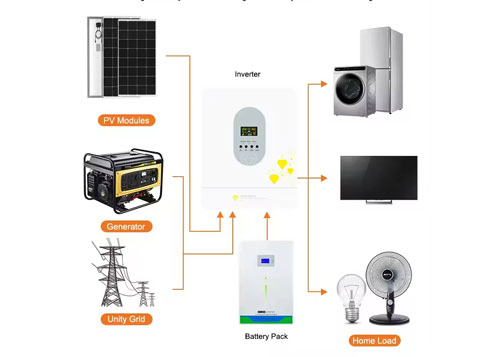

Inverter Working Diagram

Provides high-quality AC power for stable and reliable performance
High efficiency for optimal energy conversion
Consistent voltage output for smooth operation, ensuring system reliability
