GD8648 8600W Hybrid Solar Inverter | High Power Energy Storage Inverter

The DeRun GD8648 8600W Hybrid Solar Inverter is a high-performance unit designed for large commercial and industrial energy systems. It combines advanced MPPT technology with fast transfer switching and flexible communication options. Ideal for users seeking higher power output, seamless hybrid operation, and remote monitoring.

Key Features:

Rated Power: 8600W / 48V DC
Dual PV input current: 27A + 27A

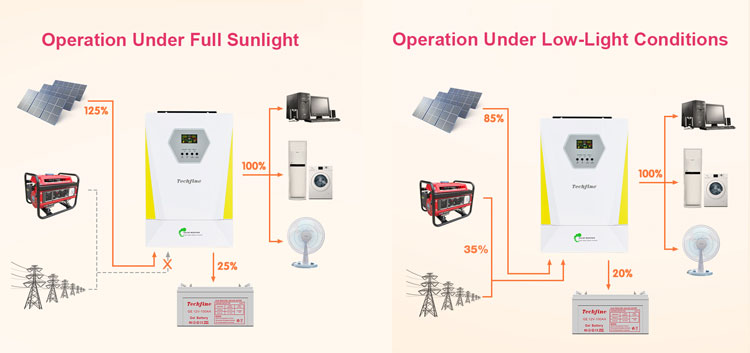

Supports on-grid, off-grid, and hybrid operation modes
Near-zero transfer time ensures uninterrupted power
LCD touch screen display for real-time data
BMS communication compatible with multiple lithium battery protocols
Overload and short-circuit protection
Slim and lightweight design for easy installation
Low noise operation (≤50dB)
Optional WiFi module for intelligent remote monitoring

Model		GD8648
AC Input Voltage	AC Input	220V AC/110V AC
	Input Voltage Range	90-280V±3V AC(Normal Mode) 170V-280V±3V AC(UPS Model)
	Input Frequency	50/60Hz±5%
	Rated Power	8600W
Output	PV Inverter Output Power	11000W
	Output Voltage	220/230/240VAC±5%
	Output Frequency	50/60Hz±0.1%
	Output Wave	Pure Sine Wave
	Transfer Time	≤10ms(UPS Model)/≤20ms(INV Model)
	Peak Power	17200VA
	Overload Ability	Battery Model:11s@105%-150% Load 2s@150%-200% Load 400ms@＞200% Load
Battery	Rated Voltage	48V DC
	Constant Charging(Configurable)	56.4V DC
	Charging Voltage(Configurable)	54V DC
Charger	PV Charging Method	Double MPPT
	Max PV Input Power	2*6500W
	MPPT Input Voltage Range	90~500V DC
	Optimal VMP Range	360~430V DC
	Max PV Input Voltage	500V DC
	Max PV Input Current	27A
	Max PV Charging Current	120A
	Max AC Charging Current	150A
	Max Charging Current	120A
Dispaly	LCD Interface	Can display operating mode/Load/Input/Output
Inerface	RS232	Baud Rate 2400
	Expansion Slot Communication Inerface	Lithium Battery BMS Communication Card,WiFi/Pitch 2.54mm
	Parallel Inerface	Not Support Parallel
Ambient Temperature	Operation Temperature	-10℃~50℃
	Operating Environment Humidity	-10℃~60℃
	Storage Temperature	Non Condensing
	Noise	≤50dB

Digitalized Energy Storage Technology

Digital Battery Management System – Optimizes battery performance and longevity
AI Algorithm for Maximum Solar Efficiency Tracking – Ensures the highest energy output by adjusting to varying sunlight conditions

GD Series Off Grid Solar Inverter Advantages

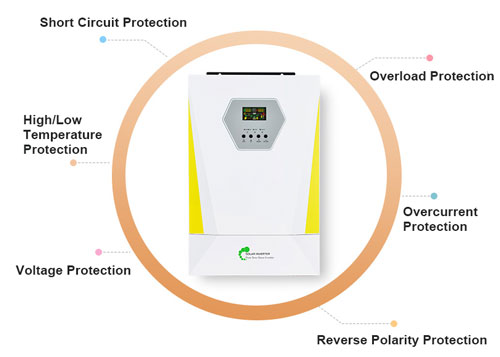

All-Round Protection, Total Safety

Short Circuit Protection – Safely shuts down during a short circuit
High/Low Temperature Protection – Guards against extreme temperatures
Voltage Protection – Ensures stable operation despite voltage fluctuations
Overload Protection – Prevents damage by reducing overload
Overcurrent Protection – Shields the inverter from excess current
Reverse Polarity Protection – Avoids damage from incorrect wiring

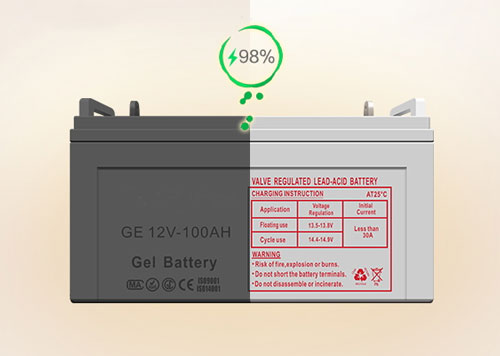

Lithium Battery Wake-up Function

Automatic Lithium Battery Start-up: Powers on seamlessly from the battery.
Smart & Safe Charging: Designed for safety and peace of mind.
Zero Activation Required: Fully operational for immediate use after charging.
Hands-Off Recovery: Automatically detects power restoration, charges, and reboots.

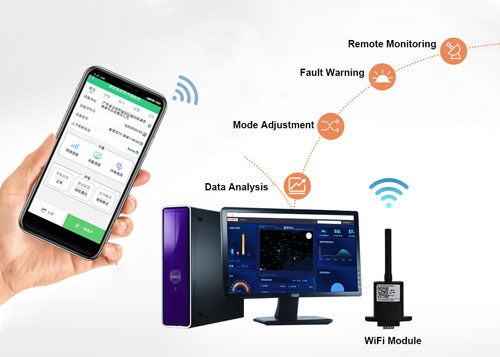

Remote Monitoring

Supports multiple remote monitoring options, including computer and app access, with the ability to set parameters remotely.

GD8648 8600W Hybrid Solar Inverter for Commercial and Industrial Systems

Digitalized Energy Storage Technology

All-Round Protection, Total Safety

Lithium Battery Wake-up Function

Remote Monitoring
